BATOP LogoMCL-1064: Microchip laser 1064 nm


Microchip Laser MCL-1064-150 and Fiber Coupled Microchip Laser MCL-1064-150-f

The microchip laser module delivers short single mode pulses on demand at a wavelength of 1064 nm. The pulse repetition rate is software controlled and can be set between single shot and 500 kHz. The nominal pulse duration is 150 ps.
The MCL-1064-150 contains a microchip with pump diode and a software controlled electronic module. The microchip is based on a Nd:YVO4 laser crystal with a semiconductor saturable output coupler.
A fiber coupled version of the microchip laser MCL-1064-150-f is also available. For the fiber coupled microchip laser the output is realized by a FC/APC terminated polarisation maintaining single mode fiber.

MCL-1064-150 module description:

  • Compact laser module with pulsed laser radiation at 1064 nm
  • Adjustable repetition rate up to 500 kHz via USB and control program
  • Stand alone mode at (user) preconfigured repetition rate (no software control needed)
  • Synchronisation to external clock or pulse on demand possible
Possible applications:
  • Micromachining
  • Light detection and ranging (LIDAR)
  • Precision measurements
  • Frequency conversion
  • Seed laser
• Quote Request

Microchip laser on table
Microchip Laser MCL-1064-150

Microchip laser on table

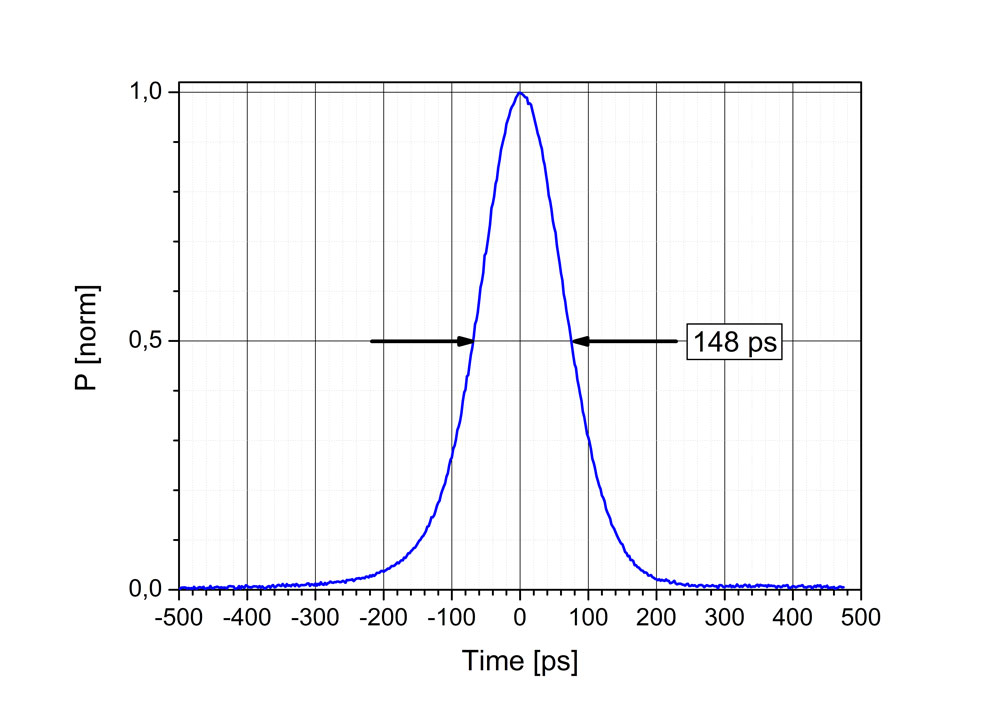

typical pulse

Fiber coupled Microchip laser on table
Fiber coupled Microchip Laser MCL-1064-150-f

Technical data:

• Microchip Laser MCL-1064-150 parameters

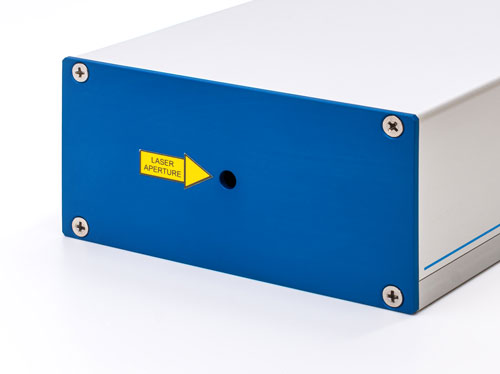

Microchip Laser MCL-1064-150

Laser Parameters

Emission wavelength: 1064.0 nm ± 0.2 nm
Beam divergence: 40 mrad
Beam waist diameter: 32 µm
M2: 1.3
Pulse energy: > 12.5 nJ
Pulse duration: 150 ps ± 30 ps
Repetition rate: single shot – 500 kHz
Dimensions: 164 mm x 105 mm x 51 mm
Weight: 900 g
Power supply: 12 V = / 3 A

• Data sheet (pdf)

Front Panel

Front panel

Control Software

The provided control software can be used to:
  • Switch the laser on or off
  • Reconfigure the repetition rate of the laser
  • Manage trigger modes
  • Check the status of the laser

A LabVIEW driver to access the laser module via USB can be provided on request.

Rear Panel

Rear panel

• Fiber Coupled Microchip Laser MCL-1064-150-f parameters

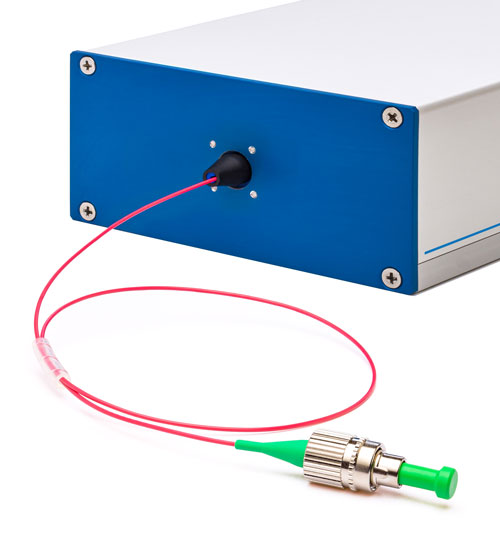

Fiber Coupled Microchip Laser MCL-1064-150-f

Laser Parameters

Emission wavelength: 1064.0 nm ± 0.2 nm
Pulse energy: > 7.5 nJ
Pulse duration: 150 ps ± 30 ps
Repetition rate: single shot – 500 kHz
Connector: FC/APC
Mode field diameter: 6.6 µm ± 0.5 µm @ 980nm
Fiber type: Fujikura SM98-PS-U25
Dimensions: 180 mm x 105 mm x 51 mm
Weight: 920 g
Power supply: 12 V = / 3 A

• Data sheet (pdf)

Front Panel

Front panel

Control Software

The provided control software can be used to:
  • Switch the laser on or off
  • Reconfigure the repetition rate of the laser
  • Manage trigger modes
  • Check the status of the laser

A LabVIEW driver to access the laser module via USB can be provided on request.

Rear Panel with Fiber port

Rear Panel with Fiber port

sponsored by BMBF


This work has been supported by the the Federal Ministry of Education and Research.
Funding initiative „Effiziente Hochleistungs-Laserstrahlquellen“ (EffiLAS)
Joint research project "IMPULS" grant No. 13N13963
